TX6051 输出可调，0.6V低输出电压稳压器

发布时间：2024-01-17 18:02:00来源：http://www.szxunrui.cn/news999532.html

TX6051 输出可调，0.6V低输出电压稳压器

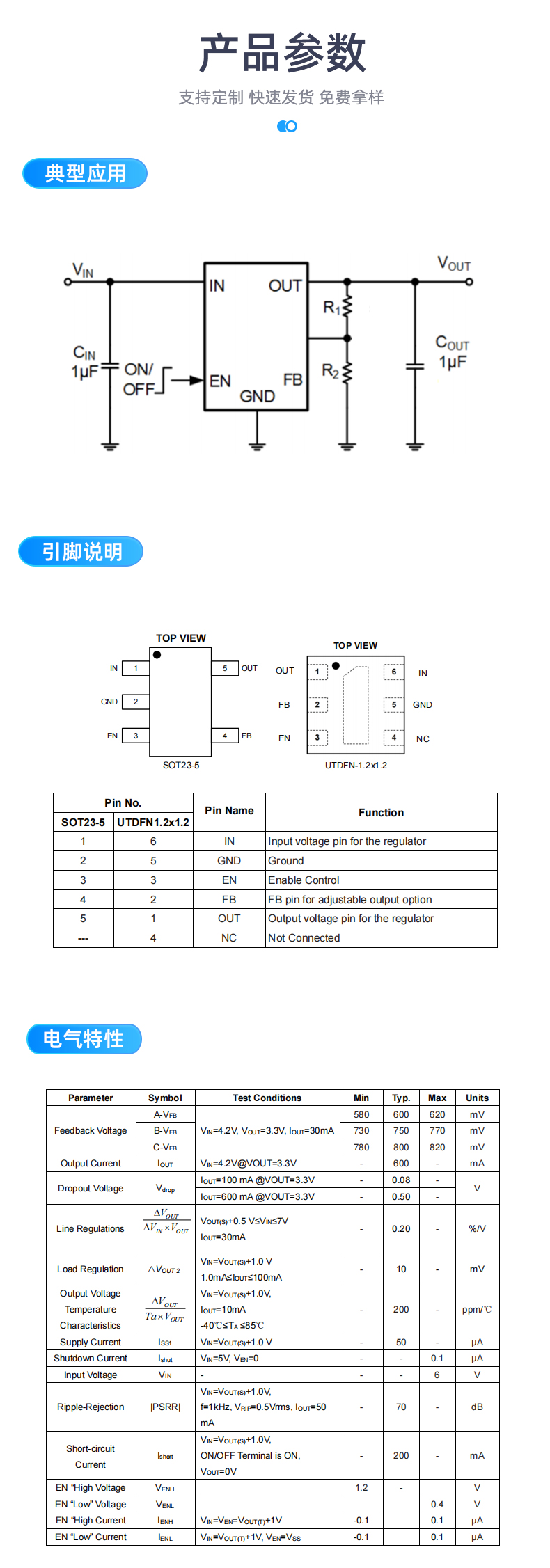

Features

?Dropout Voltage:80mV @ 100mA(3.0V type)

?High Ripple Rejection: 70dB@1KHz

?Internal protector: current limiter, short protector and over temperature protection

?FB voltage: A. 0.6V B. 0.75V C. 0.8V

?Low Power Consumption: 50uA (TYP.)

?Minimum Output Current : 600mA(VIN=VOUT+0.5V)

?Standby Current: less than 0.1μA

?fast discharge function

?SOT23-5, UTDFN1.2x1.2-6L Package

Applications

?Cellular Handsets

?Battery‐Powered Equipment

?Wi-Fi Router Portable AV equipment

?Hand‐Held Instruments

?Portable Information Application

?Adjustable power supply

General Description

The TX6051 series are highly precise, low noise,positive voltage LDO regulators manufactured using CMOS processes. The series achieves high ripple rejection and low dropout and consists of a standard voltage source, an error correction,current limiter and a phase compensation circuit plus a driver transistor. External output feedback,customers can easily get the required voltage. In order to make the load current does not exceed the current capacity of the output transistor,built-in over-current protection, over temperatureprotection and short circuit protection. Theinternal op amp with advanced structure, theoutput capacitor can be omitted.
